Transfer functions

Let's assume that we have the following transfer function

$$H(z)=\frac{1+z^{-1}}{1-z^{-1}+0.5^{-2}}=\frac{B(z)}{A(z)}$$

• To enter the numerator

  >> b=[1 1]

  b =

       1     1


• To enter the denominator

  >> a=[1 -1 0.5]

  a =

      1.0000   -1.0000    0.5000


  NOTE: if, for example the middle coef. was zero, you still have to enter it as zero, you should not ignore it otherwise the denominator will only be first order.
• To find the zeros and poles

  >> [z,p]=tf2zp(b,a)

  z =

      -1


  p =

     0.5000 + 0.5000i
     0.5000 - 0.5000i


  where z and p are the vectors representing the zeros and poles of the system, respectively.
• To plot the zeros and poles

  >> zplane(b,a)


  or

  >> zplane(z,p)

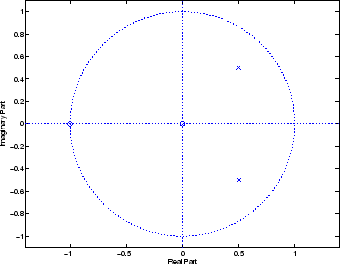

  Figure 5: Pole-zero plot


• To get the partial fraction expansion

  >> [R,P,K]=residuez(b,a)

  R =

     0.5000 - 1.5000i
     0.5000 + 1.5000i


  P =

     0.5000 + 0.5000i
     0.5000 - 0.5000i


  K =

       []


  The above is equivalent to

  $$H(z)=\frac{R(1)}{1-P(1)z^{-1}}+\frac{R(2)}{1-P(2)z^{-1}}$$
