EE342.01: MATLAB M-FILE FOR SIMULATING DIGITAL PID CONTROL OF A DC MOTOR

%
%  Filename:  example6m
%
%  Description:  M-file to demonstrate digital PID control of a geared
%                DC motor.
%

figure(1)                               % put plot in figure 1
clf;                                    % clear figure & memory
clear;

tmax = 0.3;                             % amount of time to run simulation
T = 0.001;                              % sample interval

Kp = 2000;                              % proportional controller gain
Kd = 0.0;                               % derivative controller gain
Ki = 0.0;                               % integral controller gain
wd = 0.18;                              % desired angular velocity (krpm)
eint = 0;                               % initialize error integral to zero
eprev1 = 0;                             % initialize past values of error
eprev2 = 0;                             % to zero

KT = 4.07;				% motor torque constant
L = 0.00156;                            % motor inductance
J = 2.0;                                % motor rotor & load inertia
R = 1.89;                               % motor resistance
B = 13.0;                               % motor/gear/bearing friction
Kb = 3.01;                              % motor back emf constant

N = 6/1;                                % gear ratio

wprev1 = 0;                             % w[1] = w(0) = 0
wprev2 = 0;                             % w[0] = wdot(0)*T + w(0)

woprev1 = wprev1/N;                     % initial values for output
woprev2 = wprev2/N;                     % shaft speed

for n=2:tmax/T,

  eprev2 = (wd - woprev2);              % define errors
  eprev1 = (wd - woprev1);
  eint = eint + (eprev1 + eprev2)*T/2;  % integrate e using trapezoidal rule
  eder = (eprev1 - eprev2)/T;           % differentiate e using Euler approx.

  vaprev2 = Kp*eprev2 + Kd*eder + Ki*eint;  % compute input voltage

  w = (2-(R*J+B*L)*T/(L*J))*wprev1 + ...
      ((R*J+B*L)*T/(L*J) - 1 - (B*R+KT*Kb)*T*T/(L*J))*wprev2 + ...
      KT*T*T/(L*J)*vaprev2;             % DC motor difference eqn

  wprev2 = wprev1;                      % store values for next iteration
  wprev1 = w;

  wo = w/N;                             % convert motor speed to output shaft
  woprev2 = woprev1;                    % speed using gear ratio
  woprev1 = wo;

  nTvec(n-1) = n*T;                     % store nT,wo into vectors for plotting
  wovec(n-1) = wo;

end

nTvec = [0*T 1*T nTvec];                % put IC's into nT,w vectors
wovec  = [0 0 wovec];

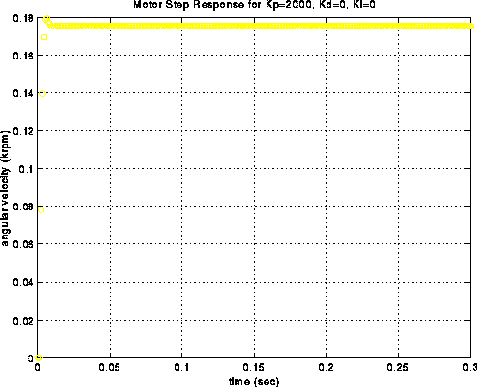

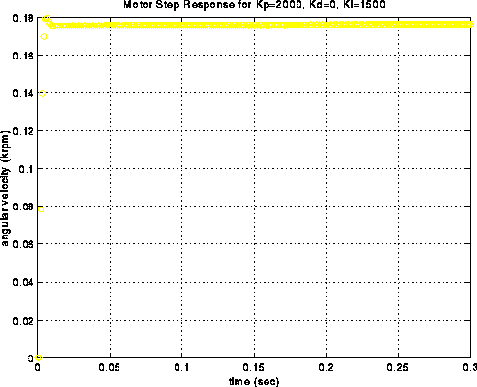

plot(nTvec, wovec, 'o')
grid;
xlabel('time (sec)');
ylabel('angular velocity (krpm)');
ttle = ['Motor Step Response for Kp=', num2str(Kp), ', Kd=', num2str(Kd), ...
        ', Ki=', num2str(Ki)];
title(ttle);
