This example shows how MATLAB commands can be used to simulate a pendulum using the continuous-time and discrete-time state variable models.
Matlab m-file example2.m:% % Filename: example2.m % % Description: This m-file demonstrates how matlab can be used to compute % the discrete-time approximation to the solution of the % pendulum state and output equations. The input will be a % sinusoidal torque. % clear; clf; % clear matlab memory and figure m = 5.0; l = 0.5; g = 9.81; b = 1.3; % define system parameters A = [0 1; -g/l -b/(m*l*l)]; % define system state matrices B = [0;1/(m*l*l)]; C = [1 0]; D = [0]; x0 = [-0.2; 0.1]; % initial conditions tmax = 5; % maximum time in simulation [num,den] = ss2tf(A,B,C,D); % compute system transfer function disp('Theta(s)/T(s) = '); printsys(num,den,'s'); disp(' '); disp('poles ='); % compute system poles roots(den) disp(' '); disp('eigenvalues = '); % compute system eigenvalues eig(A) disp(' '); t = 0:0.01:tmax; % perform 'cont-time' simulation Torque = sin(pi*t); [y,x] = lsim(A,B,C,D,Torque,t,x0); plot(t,y); grid; xlabel('tResults shown in Matlab window:'); ylabel('theta(t)'); title('Pendulum Simulation Example'); hold; xk = x0; T = 0.01; % define initial conditions & time step for k = 0:tmax/T, % perform 'disc-time' simulation xk = (T*A + eye(2,2))*xk + T*B*sin(pi*k*T); yk = C*xk; plot(k*T,yk,'o'); end; hold; legend('y(t)', 'y[kT]'); % create a legend

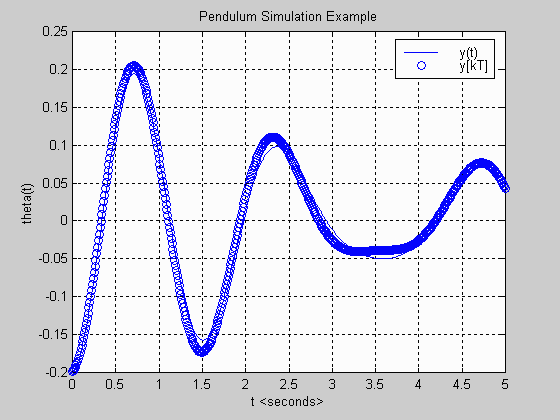

Theta(s)/T(s) = num/den = 0.8 -------------------- s^2 + 1.04 s + 19.62 poles = ans = -0.5200 + 4.3988i -0.5200 - 4.3988i eigenvalues = ans = -0.5200 + 4.3988i -0.5200 - 4.3988i Current plot held Current plot releasedMATLAB Plot Generated:
