1 Prelab

1.1 Registers

In this lab we will investigate two types of registers.

1.1.1 Simple Latch

One type of register is a simple latch as shown in Figure 1. When LOAD is high, the output data D_OUT will not change. When LOAD is low, the input data D_IN should be latched into the register on the rising edge of CLOCK.

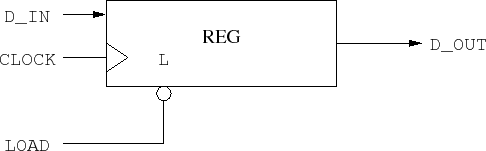

Figure 1: Register using simple latch

1.1.2 Program Counter

The second type of register is called a program counter (PC). This keeps track of which instruction in memory to execute. Usually programs are executed sequentially, so after executing the instruction at address, say, $0\times0123$ , the program will then execute the instruction at address $0\times0124$ . In this case PC needs to increment after each instruction is executed. Sometimes the program needs to execute code in a different area of memory - flow control statements such as for and while do this. In this case, the PC needs to be loaded with a new address. In order for the program to start, you will need to reset the program counter to zero to start execution at the first instruction of the program. Figure 2 shows what the PC looks like.

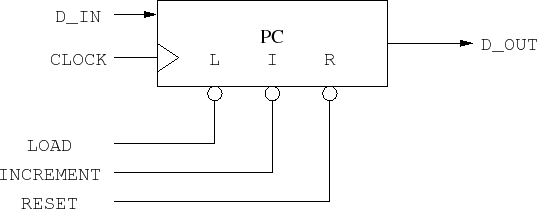

Figure 2: PC register

Normally, INCREMENT, LOAD, and RESET will be high. When INCREMENT is low, the PC should increment D_OUT to D_OUT+1 on the rising edge of CLOCK. When LOAD is low, the input data D_IN should be latched into the register on the rising edge of CLOCK. The system which controls PC will ensure that LOAD and INCREMENT are never low at the same time. (In your program, you should have PC do something sensible, like latch D_IN, if both happen to be low simultaneously.) When RESET is low, PC should immediately reset to $0\times00$ ; it shouldn't wait for a clock edge. This is normally called a synchronous counter with synchronous load and asynchronous reset.

1.2 Prelab Questions

1. Design an eight-bit synchronous latch in Verilog.
2. Design an eight bit PC as described above in Verilog.
3. Write a program which uses the above two designs as functions to test that they work.
